YHZS25 mobile concrete plant (25m3/h)

YYHZS25 mobile concrete plant belongs to the small type or mini type ready mixed concrete batching plant, is a new type ready mix batching equipment which is movable by trailing , this production line has a best selling market in construction fields. It is uniquely and novelly designed with a simple and compact structure. One trailing unit assembles a whole working set of aggregating, weighing, conveying and mixing system, enabling it great overall mobility. By absorbing new technologies from overseas and domestic, the mobile concrete mixing plant has such characteristics as accurate weighing, homogeneous and efficient mixing, fast and clean delivery, convenient to move and operate, safe trailing, etc. It is the ideal choice for projects that require frequent movement from one construction site to another.

Main specification

1、productivity：25m3/h（standard working condition）

2、total power consumption： 45kw

3、aggregate weighing accuracy: ±2%

4、cement weighing accuracy: ±1%

5、water weighing accuracy: ±1%

6、additive weighing accuracy: ±1%

7、produce cycle:72 seconds

8、control mode: centralized control by plc, full auto. semi-auto and manul selection.

9、mixed material discharge height: 2800mm overall size: about 15m×4m, main machine: 12.6m long x 2.2m width x 5.5m height weight of whole machine 19t

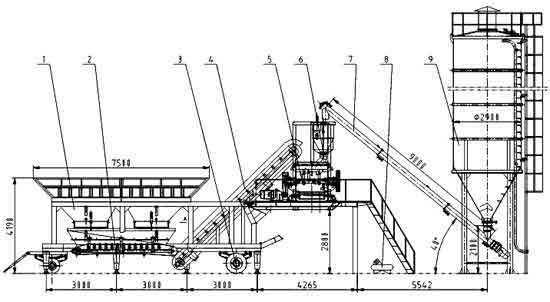

General layout of YHZS25 mobile concrete plant

installation of YHZS35 mobile concrete plant

We can deliver YHZS series mobile concrete plant to construction site in the hauling situation, then install quickly on site and get it to run without debugging. This equipment has the characteristic of high automatic, well mixing, high productivity, high flexibility, convenient operation, and good stability. By absorbing new technologies from overseas and domestic, the mobile concrete Batching plant has such characteristics as accurate weighing, homogeneous and efficient mixing, fast and clean delivery, convenient to move and operate, safe trailing, etc.
