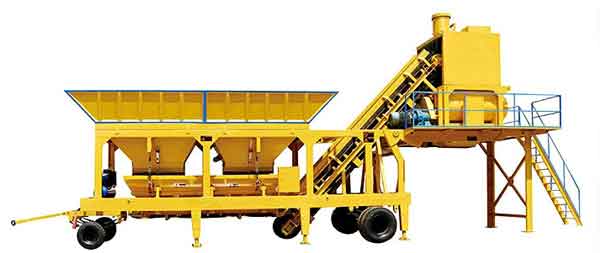

YHZS35 mobile concrete plant (35m3/h)

YHZS35 mobile concrete plant (35m3/h) is a new type ready mix concrete plant, which put dosing, weighing, conveying, mixing, discharging and electric control system in one movable trailing unit. It is all the same as stationary batching plant to operate and maintain, at the same time, it can be overall mobile.
YHZS35 mobile concrete mixing plant pulling structure with running system and standard coupling pin included. It can be dragged by trailer. Without foundation and commissioning enables convenient transportation, the mixing plant can be divided into several standard modules, and then be packed into containers.

Main specification

1、 Capacity: 35m3/h(under standard working condition)

2、 Total power consumption: 62 KW

3、 Aggregate weighing precision: ±2%

4、 Cement weighing precision: ±1%

5、 Water weighing precision: ±1%

6、 Additive weighing precision: ±1%

7、 Cycling time: 72 seconds

8、 Control mode: PLC, can operate on full auto, semi-auto and manual modes

9、 Mixed material discharge height: 2600mm

10、 Overall dimension: 13m×2.2m×5.5m

11、 total weight: approximated: 20tons

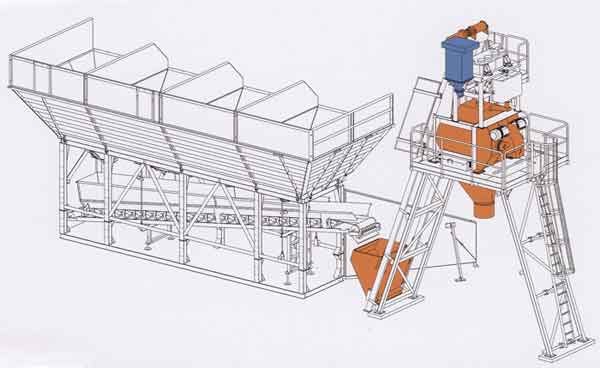

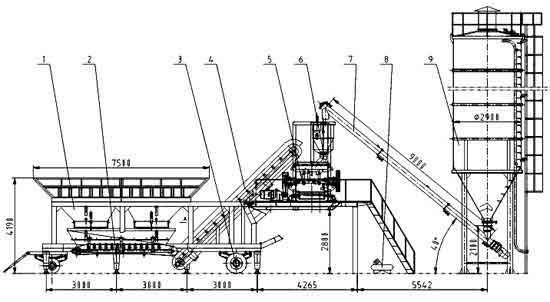

General layout of YHZS35 mobile concrete plant

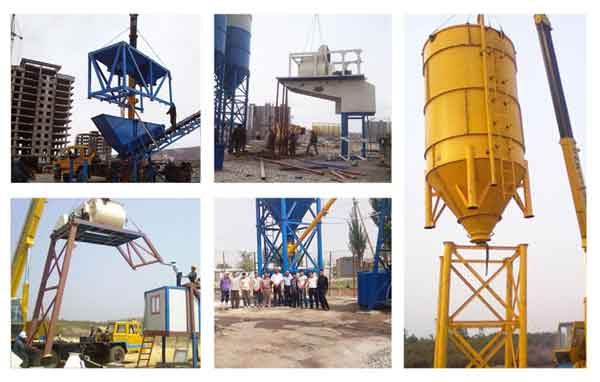

installation of YHZS35 mobile concrete plant

We can deliver YHZS series mobile concrete plant to construction site in the hauling situation, then install quickly on site and get it to run without debugging. This equipment has the characteristic of high automatic, well mixing, high productivity, high flexibility, convenient operation, and good stability. By absorbing new technologies from overseas and domestic, the mobile concrete Batching plant has such characteristics as accurate weighing, homogeneous and efficient mixing, fast and clean delivery, convenient to move and operate, safe trailing, etc.
