YHZS60 mobile concrete plant (60m3/h)

YHZS60 Mobile Concrete Plant(60m3/h) is special construction concrete equipment designed by our company as module. It is applied for airport way, wharf, road, bridge and so on, It can be installed quickly on site. It can also be used for the large and emergency repair construction operation. This mobile Batching plant is consisted by mixer, batching system, feeding system, weighing system, cement silo, screw conveyor and all the necessary equipment, and they are designed as module .So We can deliver YHZS series concrete plant easily by container, and install quickly on site and get it to run without debugging. This equipment has the characteristic of high automatic, well mixing, high productivity, high flexibility, convenient operation, and good stability.

Main specification

1． Mixing Model：HZS-50/60

2． Productivit：50m3/h

3． Main Mixer

Model：MSO1500/1000（Discharge capacity：1000L） Motor Power:2×18.5kw

4． Aggregate Hopper Capacity: 3×10 m3

5． Weighing Meathod Aggregate、Cement、flyash、water、Additive：Measured separately

6． Weighing range: Aggregate：3000 kg Cement：600 kg flyash：200 kg water：400 kg Additive：50kg

7．Weighing Accuracy：Aggregate：±2% Cement、flyash、water、Additive：±1%

8． Installed Powder：100 kw

9． Discharge Height： 3800 mm

10. Total Powder： 380V/50Hz

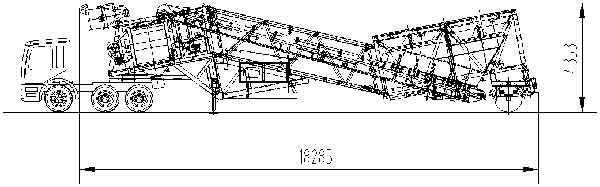

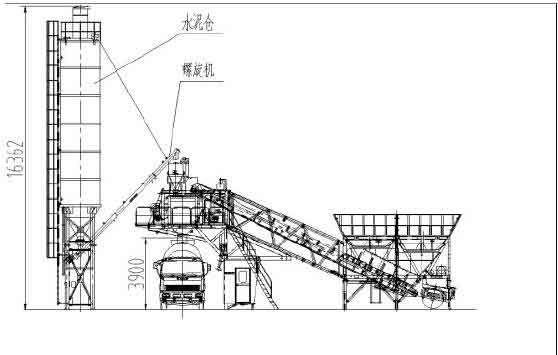

General layout YHZS60 mobile concrete plant

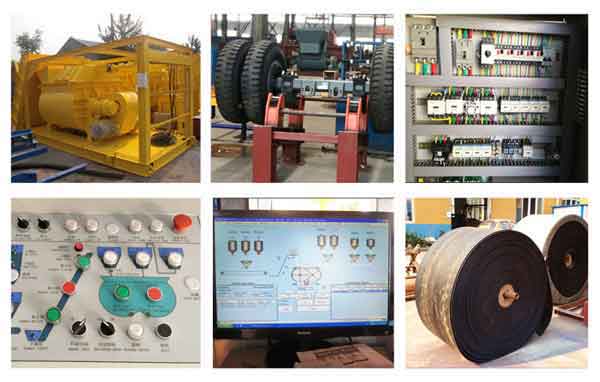

parts of of YHZS60 mobile concrete plant

We can deliver YHZS series mobile concrete plant to construction site in the hauling situation, then install quickly on site and get it to run without debugging. This equipment has the characteristic of high automatic, well mixing, high productivity, high flexibility, convenient operation, and good stability. By absorbing new technologies from overseas and domestic, the mobile concrete Batching plant has such characteristics as accurate weighing, homogeneous and efficient mixing, fast and clean delivery, convenient to move and operate, safe trailing, etc.
