YHZS75 mobile concrete plant (75m3/h)

YHZS75 mobile concrete plant (75m3/h) with running system is special construction concrete equipment designed independently by our company It can be installed quickly on site. This mobile Batching plant integrate mixer, batching system, running system, feeding system, weighing system, cement silo, screw conveyor and all the necessary equipment into together, installing on a transport chassis.

Main specification

1、 Capacity: 75m3/h(under standard working condition)

2、 Total power consumption: 88 KW

3、 Aggregate weighing precision: ±2%

4、 Cement weighing precision: ±1%

5、 Water weighing precision: ±1%

6、 Additive weighing precision: ±1%

7、 Cycling time: 72 seconds

8、 Control mode: PLC, can operate on full auto, semi-auto and manual modes

9、 Mixed material discharge height: 3800mm

10、 Working dimension: 18.1m×2.5m×8.227m Transportation dimension: 18.6m×2.5m×4.353m

11、 total weight: approximated: 27tons

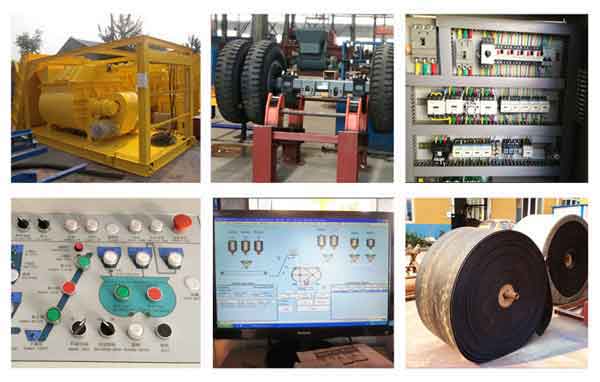

parts of YHZS75 mobile concrete plant

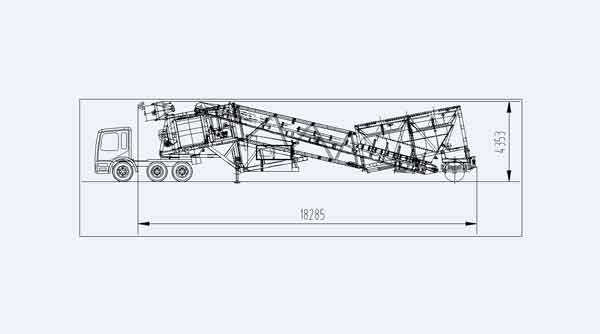

General layout of YHZS75 mobile concrete plant

We can deliver YHZS series mobile concrete plant to construction site in the hauling situation, then install quickly on site and get it to run without debugging. This equipment has the characteristic of high automatic, well mixing, high productivity, high flexibility, convenient operation, and good stability. By absorbing new technologies from overseas and domestic, the mobile concrete Batching plant has such characteristics as accurate weighing, homogeneous and efficient mixing, fast and clean delivery, convenient to move and operate, safe trailing, etc.
